OSM tags man_made=pier and man_made=groyne
« am: 27 Juli 2015, 20:26:15 »
Hi Greg,

I discovered that the IMC supports the OSM tag man_made=breakwater but it doesn't support the tags man_made=pier and man_made=groyne which are e.g. very common in coastal waters.
Could you please add those to the next IMC release?

I already tried a workaround by replacing groyne with breakwater and man_made=pier with highway=residential in the xml data but it doesn't always look nice because piers have sometimes an area=yes tag.

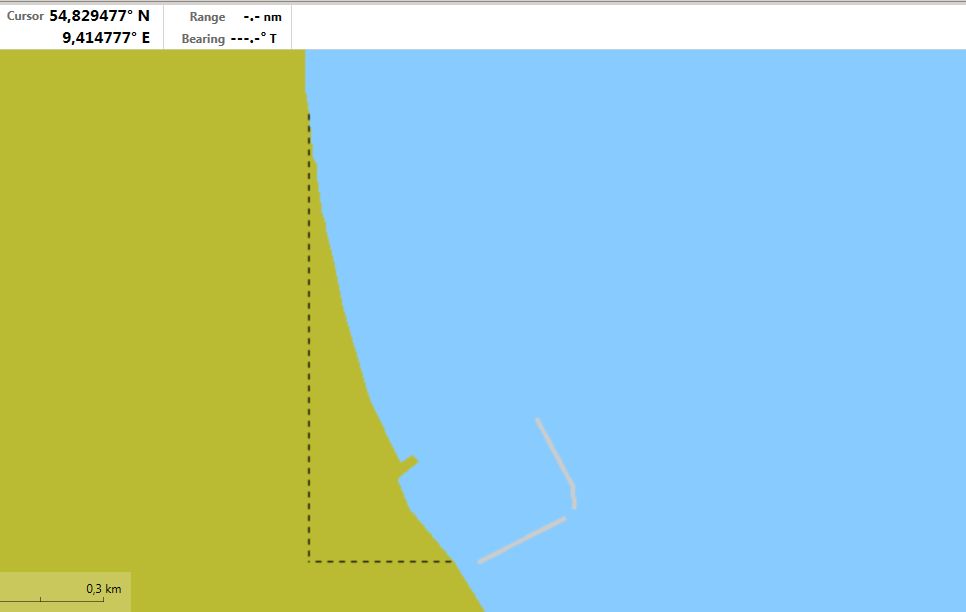

You can see a test case in the attachments.


Best regards
Sven

Offline gregory

  • Insight Map Creator
  • *
  • Beiträge: 824
Re: OSM tags man_made=pier and man_made=groyne
« Antwort #1 am: 27 Juli 2015, 20:49:34 »
Easy enough.  I'll classify both as a shoreline construction (SLCONS/CATSLC).

Offline Guppyfreund

  • Barsch
  • ***
  • Beiträge: 124
  • My/Mein Echo Equipment: Elite-7 Ti
Re: OSM tags man_made=pier and man_made=groyne
« Antwort #2 am: 27 Juli 2015, 21:05:03 »
Thank you! :)

Offline ulf_l

  • Jungbrut im Schwarm
  • *
  • Beiträge: 26
  • Elite-7 Chirp
Re: OSM tags man_made=pier and man_made=groyne
« Antwort #3 am: 28 Juli 2015, 06:57:44 »
Hello

I'm new in this bussines, so i would be thankful if you could describe you solution way with a few words:
@Sven: do you use a xml-editor to change the values in the xml file ?
@Greg: shoreline construction is apparently no value for the man_made key. How did you do the "clasify" ?

I know it's a bit bothersome for people that knows all that things, but for the newbies it's hard to follow what you are doing.

Thank's a lot, Ulf


Offline gregory

  • Insight Map Creator
  • *
  • Beiträge: 824
Re: OSM tags man_made=pier and man_made=groyne
« Antwort #4 am: 28 Juli 2015, 13:30:33 »
A lot of man made objects like piers, groynes, and breakwaters map to the Shoreline Construction type in the S-57 standard.

Fisherman and Navigators are most used to water type objects being classified under this standard.

Sven's remark is likely that he downloaded the .OSM file rather than the .OSM.PBF file and did a find replace on the "man_made=groyne" tag.

The .OSM standard is just the OSM data stored within an XML structure.

The .OSM.PBF standard uses binary encoded compressed data based off a Google Reader/Writer.

http://www.s-57.com/

Object Type: SLCONS

Geometric primitives: P, L, A
Set Attribute_A:   CATSLC; COLOUR; COLPAT; CONDTN; CONRAD; CONVIS; DATEND; DATSTA; HEIGHT; (?)HORACC; HORCLR; HORLEN; HORWID; NATCON; NOBJNM; OBJNAM; STATUS; (?)VERACC; (?)VERDAT; VERLEN; WATLEV;
Set Attribute_B:   INFORM; NINFOM; NTXTDS; (?)SCAMAX; SCAMIN; TXTDSC;
Set Attribute_C:   (?)RECDAT; (?)RECIND; SORDAT; SORIND;
Definition:
A fixed (not afloat) artificial structure between the water and the land, i.e. a man-made coastline.
References:
INT 1:   IF 2, 4, 5, 6, 12-15, 18,23, 33;
M-4:   313.2, 4; 321.1-4; 322.1-2; 324.1;
Remarks:
Distinction:
canal bank; coastline; lake shore; land area; pontoon; river bank;

Attribute Type: CATSLC

Attribute type: E
Used in:   SLCONS
Expected input:
ID   Meaning   INT 1   M-4
1 breakwater   IF 4.1-3;   322.1;
2 groyne (groin)   IF 6.1-3;   313.4;
3 mole   IF 12;   321.3;
4 pier (jetty)   IF 14;   321.2,4;
5 promenade pier   IF 15;   321.2;
6 wharf (quay)   IF 13;   321.1;
7 training wall   IF 5;   322.2;
8 rip rap
9 revetment
10 sea wall   IF 2;   313.2;
11 landing steps   IF 18;
12 ramp   IF 23;
13 slipway   IF 23;   324.1;
14 fender
15 solid face wharf
16 open face wharf
17 log ramp

Remarks:
The attribute 'category of shoreline construction' encodes the usage of a shoreline construction.

Offline Guppyfreund

  • Barsch
  • ***
  • Beiträge: 124
  • My/Mein Echo Equipment: Elite-7 Ti
Re: OSM tags man_made=pier and man_made=groyne
« Antwort #5 am: 28 Juli 2015, 17:53:52 »
Hi Ulf,

I use a Linux VM in VirtualBox to download and prepare the source files. I replace the tags with a program called sed because the osm files with xml structure are too big for editors like notepad++.

| sed -e 's/groyne/breakwater/g; s/k="man_made" v="pier"/k="highway" v="residential"/g' |
I also use osmfilter to keep only specific tags and osmconvert to create a .osm.pbf file in the end. sed is also available with cygwin for windows.


Regards
Sven
