Autor Thema: IMC Issues with OSM Features  (Gelesen 3092 mal)

Offline mabrykr

  • Jungbrut
  • *
  • Beiträge: 18
    • My/Mein Tackle Equipment: Cannon Downriggers, Church Walleye Boards, Dipsy Divers
  • My/Mein Echo Equipment: HDS-9 G2T
IMC Issues with OSM Features
« am: 26 Juni 2016, 17:39:23 »
Can anyone help troubleshoot why an at5 file with osm water/breakwater/pier features does not display correctly on IP and HDS unit.  The pier features do not show up in the water features.  Files attached.

Offline fjordfischer

  • Moby Dick
  • *******
  • Beiträge: 2297
  • My/Mein Echo Equipment: HDS-7 Carbon, HDS-7 G3, HDS-7 G2, SS3D, echoMAP-71sv
Re: IMC Issues with OSM Features
« Antwort #1 am: 26 Juni 2016, 18:44:16 »
My proposal: load the osm shape files and create your own IMC artwork. (or Greg has a better idea)

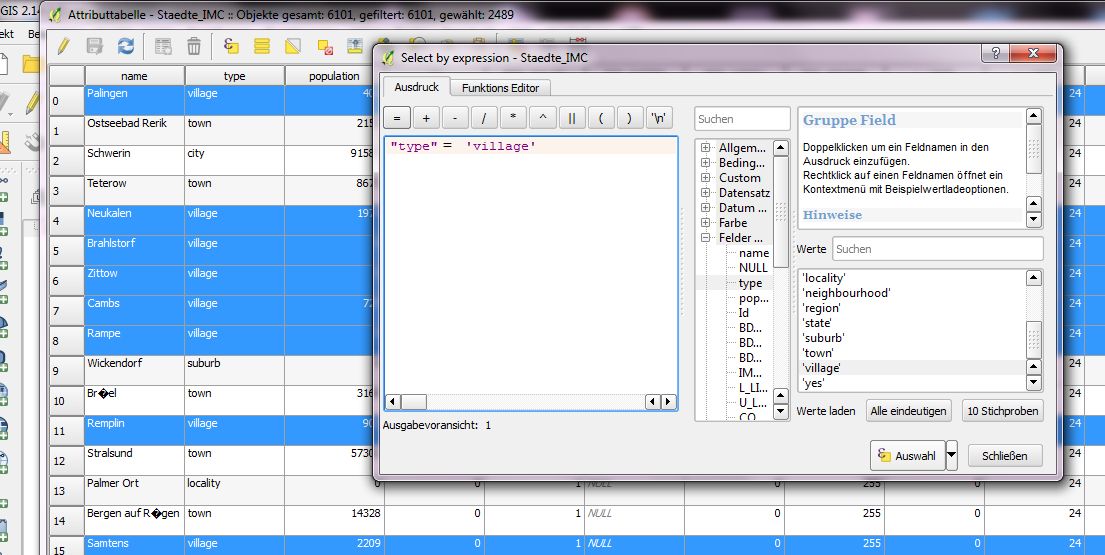

Use the "selection by expression" option in your GIS application for faster editing (sample picture).

Offline Guppyfreund

  • Barsch
  • ***
  • Beiträge: 124
  • My/Mein Echo Equipment: Elite-7 Ti
Re: IMC Issues with OSM Features
« Antwort #2 am: 26 Juni 2016, 19:12:18 »
Hi mabrykr,

we already had this topic about a year ago http://www.tacklefever.de/index.php?topic=5516

I guess you will have to wait for the next version of IMC or apply a workaround like fjordfischer proposed.

Regards
Sven

Online gregory

  • Insight Map Creator
  • *
  • Beiträge: 782
Re: IMC Issues with OSM Features
« Antwort #3 am: 27 Juni 2016, 16:05:05 »
I remembered it just being groynes.  Apparently, I had to classify piers, as well.

Offline mabrykr

  • Jungbrut
  • *
  • Beiträge: 18
    • My/Mein Tackle Equipment: Cannon Downriggers, Church Walleye Boards, Dipsy Divers
  • My/Mein Echo Equipment: HDS-9 G2T
Re: IMC Issues with OSM Features
« Antwort #4 am: 27 Juni 2016, 17:30:00 »
Re: osm water/breakwater/pier features.

Thank you.  For the time being, I'll tag all man_made/pier as man_made/breakwater.

Offline mabrykr

  • Jungbrut
  • *
  • Beiträge: 18
    • My/Mein Tackle Equipment: Cannon Downriggers, Church Walleye Boards, Dipsy Divers
  • My/Mein Echo Equipment: HDS-9 G2T
Re: IMC Issues with OSM Features
« Antwort #5 am: 27 Juni 2016, 18:24:52 »
It would be nice if IMC concentrated primarily (only?) on marine based OSM features.  These days, land based features are best viewed via mobile phones.  Just a thought.

Online gregory

  • Insight Map Creator
  • *
  • Beiträge: 782
Re: IMC Issues with OSM Features
« Antwort #6 am: 27 Juni 2016, 19:10:31 »
Chart plotters are used in many applications outside of marine like off road devices.  OSM is frequently used in datasets to provide a background chart for points of reference.

The eventual goal is to be able to incorporate all relevant information from OSM data...not to focus on one type of information over another.

Offline mabrykr

  • Jungbrut
  • *
  • Beiträge: 18
    • My/Mein Tackle Equipment: Cannon Downriggers, Church Walleye Boards, Dipsy Divers
  • My/Mein Echo Equipment: HDS-9 G2T
Re: IMC Issues with OSM Features
« Antwort #7 am: 28 Juni 2016, 03:25:33 »
I have not been able to get man_made/lighthouse and man_made/beacon to show up as anything other than black dots.  But, boat ramps show up perfectly as leisure/slipway.
