Autor Thema: Стиль для цифр глубин Halo Farben bei Schrift  (Gelesen 7644 mal)

Online Rudzik

  • Jungbrut im Schwarm
  • *
  • Beiträge: 31
  • My/Mein Echo Equipment: HDS-12 Live
Depth Digit Style

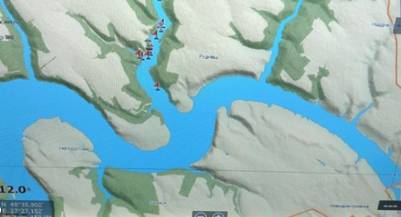

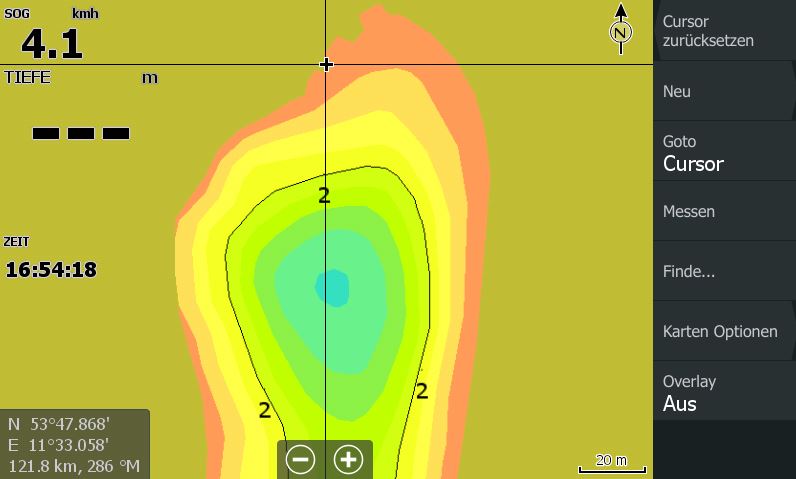

Tell me please! How to make the numbers of the depths without white halo. What attributes need to be specified? My echo HDS-Live


Offline fjordfischer

  • Moby Dick
  • *******
  • Beiträge: 2384
  • My/Mein Echo Equipment: HDS-7 Carbon, HDS-7 G3, HDS-7 G2, SS3D, echoMAP-71sv
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #1 am: 05 Juli 2019, 16:19:54 »
-   HAL_COLOR – NUMERIC – Used to set a halo color (Currently only affects Blue OS/Indigo OS. Also used over icons on NOS)
-   HAL_CLRRGB – CHARACTER – Used to set a halo color in hexadecimal  format (Currently only affects Blue OS/Indigo OS. Also used over icons on NOS)


Look also here:
https://www.tacklefever.de/index.php?topic=6607.0;wap2

Online Rudzik

  • Jungbrut im Schwarm
  • *
  • Beiträge: 31
  • My/Mein Echo Equipment: HDS-12 Live
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #2 am: 05 Juli 2019, 16:30:42 »
Give thanks. You helped me several times. I understand that in my case for Isolines it is impossible to do?  :sad:  I tried to set the value 255 for HAL_COLOR but this did not help me. I wanted to apply this to the relief isolines

Offline fjordfischer

  • Moby Dick
  • *******
  • Beiträge: 2384
  • My/Mein Echo Equipment: HDS-7 Carbon, HDS-7 G3, HDS-7 G2, SS3D, echoMAP-71sv
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #3 am: 05 Juli 2019, 17:57:34 »
You must find a detour ...

- Fade out the line depth values
- Use GIS for splitting your depth lines into expedient parts.
- Convert the splitted lines to points.
- Now you can use the point halo settings

Online Rudzik

  • Jungbrut im Schwarm
  • *
  • Beiträge: 31
  • My/Mein Echo Equipment: HDS-12 Live
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #4 am: 05 Juli 2019, 20:49:13 »
You must find a detour ...

- Fade out the line depth values
- Use GIS for splitting your depth lines into expedient parts.
- Convert the splitted lines to points.
- Now you can use the point halo settings

This is an idea! Thank! I will try  :applause:

Offline gregory

  • Insight Map Creator
  • *
  • Beiträge: 854
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #5 am: 13 September 2019, 18:06:50 »
I missed this thread.

I think the "O" flag on font will prevent the halo from being defaulted.

Online Rudzik

  • Jungbrut im Schwarm
  • *
  • Beiträge: 31
  • My/Mein Echo Equipment: HDS-12 Live
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #6 am: 15 September 2019, 10:55:11 »
I missed this thread.

I think the "O" flag on font will prevent the halo from being defaulted.
Did not work

Offline gregory

  • Insight Map Creator
  • *
  • Beiträge: 854
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #7 am: 16 September 2019, 16:06:50 »
Maybe match the halo color to the font color and reduce the text size.   rofl

The question you asked on Reefmaster is a bit complicated.  The distance between run-time points is hard set on the chart plotter.  You can use the beta IMC Attribute Mode's GEO(LINE->POINT) and set a declutter distance in the advanced options.  URL to Documentation for Feature.

Online Rudzik

  • Jungbrut im Schwarm
  • *
  • Beiträge: 31
  • My/Mein Echo Equipment: HDS-12 Live
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #8 am: 16 September 2019, 19:58:45 »
Maybe match the halo color to the font color and reduce the text size.   rofl

The question you asked on Reefmaster is a bit complicated.  The distance between run-time points is hard set on the chart plotter.  You can use the beta IMC Attribute Mode's GEO(LINE->POINT) and set a declutter distance in the advanced options.  URL to Documentation for Feature.
Thanks for the answer! Everything has already worked out for me (lines to points with an interval in parameters). It doesn’t want to be done every time.

Offline gregory

  • Insight Map Creator
  • *
  • Beiträge: 854
Re: Стиль для цифр глубин Halo Farben bei Schrift
« Antwort #9 am: 16 September 2019, 21:01:13 »
Settings changes can have a significant effect on run time.  Increasing the initial number of points or reducing the radius of the declutter will both significantly reduce processing time.
