pass autocad lines to Shp and switch to sona

[gregory]

The standard GIS procedure for this is called "dissolve".

You might still have gaps where end points aren't at the same position or at the edges of the lake.

[fjordfischer]

1. I wrote: You must a bit digitalize.

If the lines not overlays/touch, no GIS programm can work corekt, except there is an involved, tolerance distance option.
And when you have such open lines as your river estuary, first you must close the line by hand.

2. Do you have tested the OSM material (no 1 from my last post)

[fjordfischer]

The line from CAD to polyline shape is a polyline ZM (and possible other problems). With additional drawing and the tool "feature in polygon" (not QGIS) i can create a closed polygon. You can send me the shoreline, and i will take a look, what i can do.

[Antonioramos]

Hello
The problem is that I have to scan a lot and not a little bit. Each line has more than 1000Km and I have curves of 2.5 in 2.5m. The maximum quota is 152.5.
I tested the OSM and it did not fit very well in my maximum quota line.

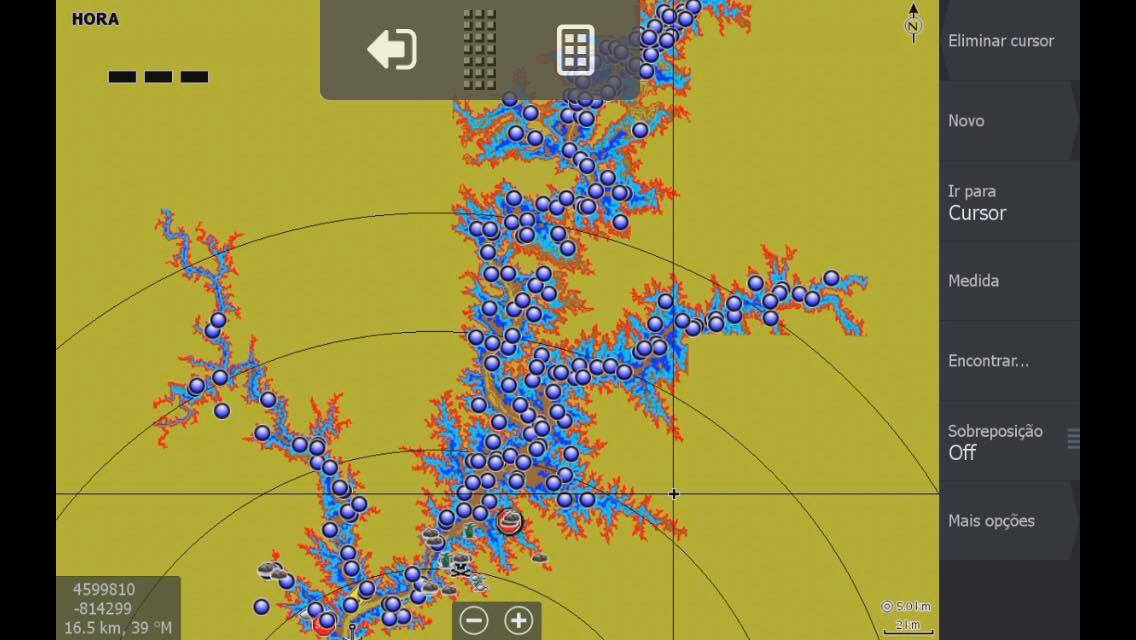

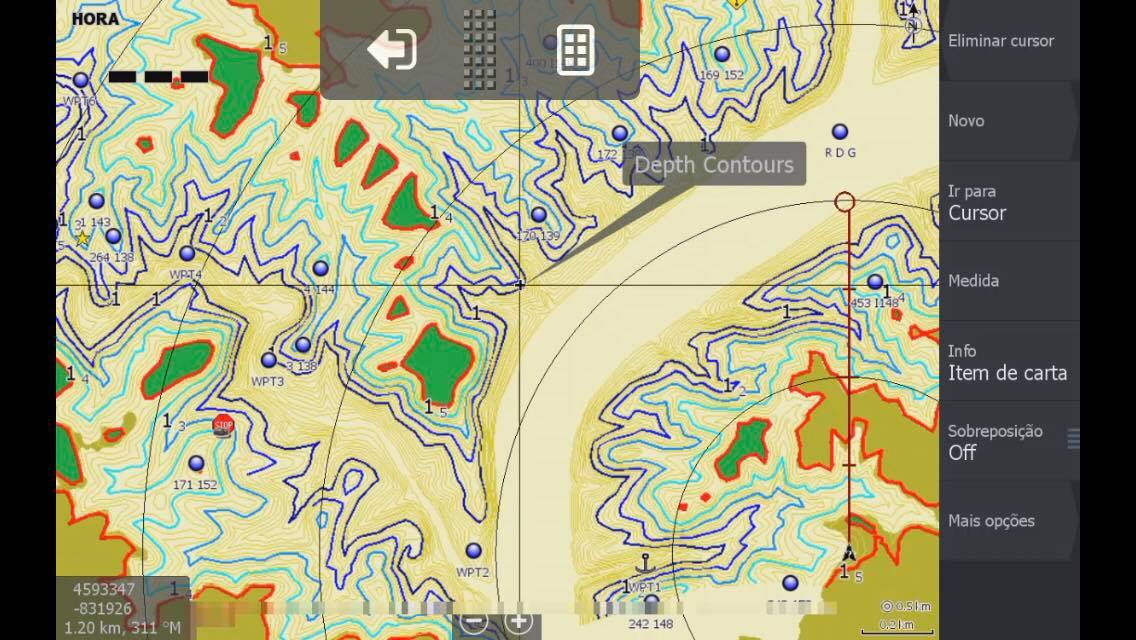

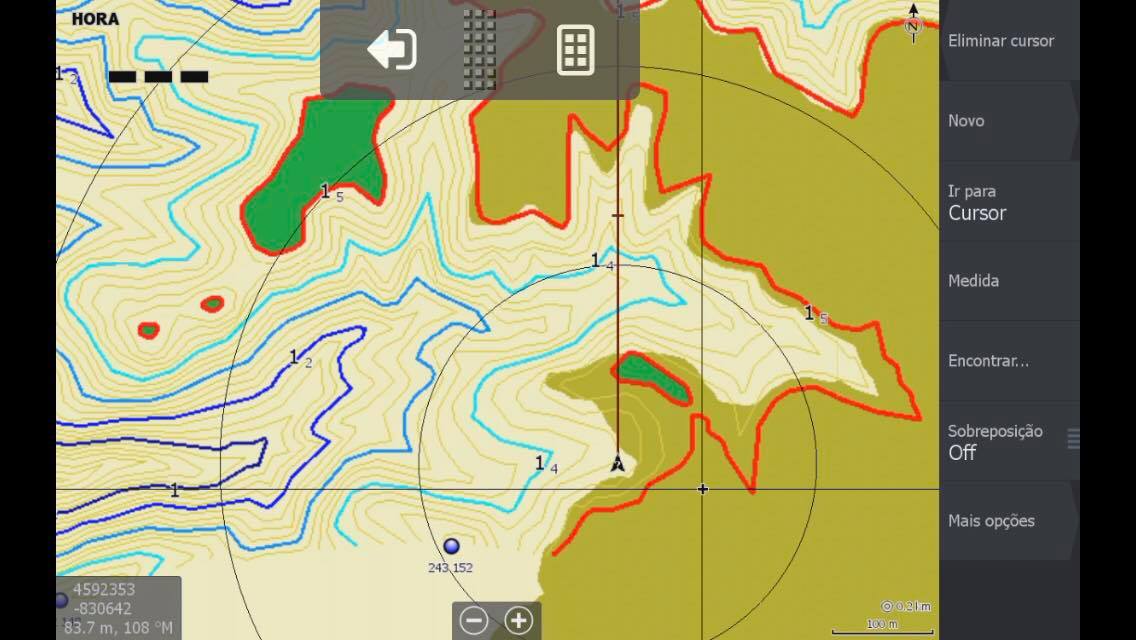

(I send photos with the background of the attached OSM and coast line)
I already added the islands.
The dxf file of the coastline has more 5000kb I can not send through the forum. I can send by email or Wetranfer if I say an email
valid.
Here is my faceboock if you do not want to send your email through the forum.
https://www.facebook.com/antonio.ramos.798278


best regards
A.Ramos

[gregory]

OSM is typically not survey grade for water bodies.  The focus is on road features and most other features have a reasonable level of accuracy.

[fjordfischer]

I have your files and need a bit more time, because there is a lot of holes in the lines.
I would also test  another solution. For this please can you tell me the one or two dates (day/year), when the shoreline/water level was "0" as in your datas.

Another question, what is the source of your files (website)? Is there only CAD files as option for a download. In my country i can find such files?

[fjordfischer]

First of all for testing: 2 shapefiles, extracted from a satellite raster. Please try it and report back, if this would be an option.

[Antonioramos]

Hello

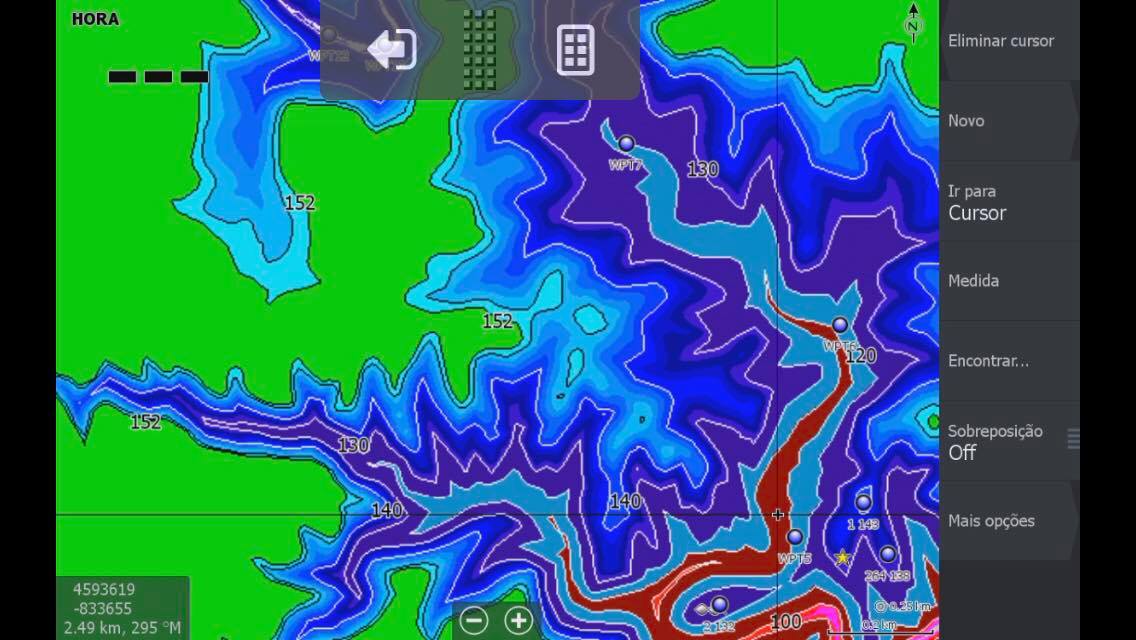

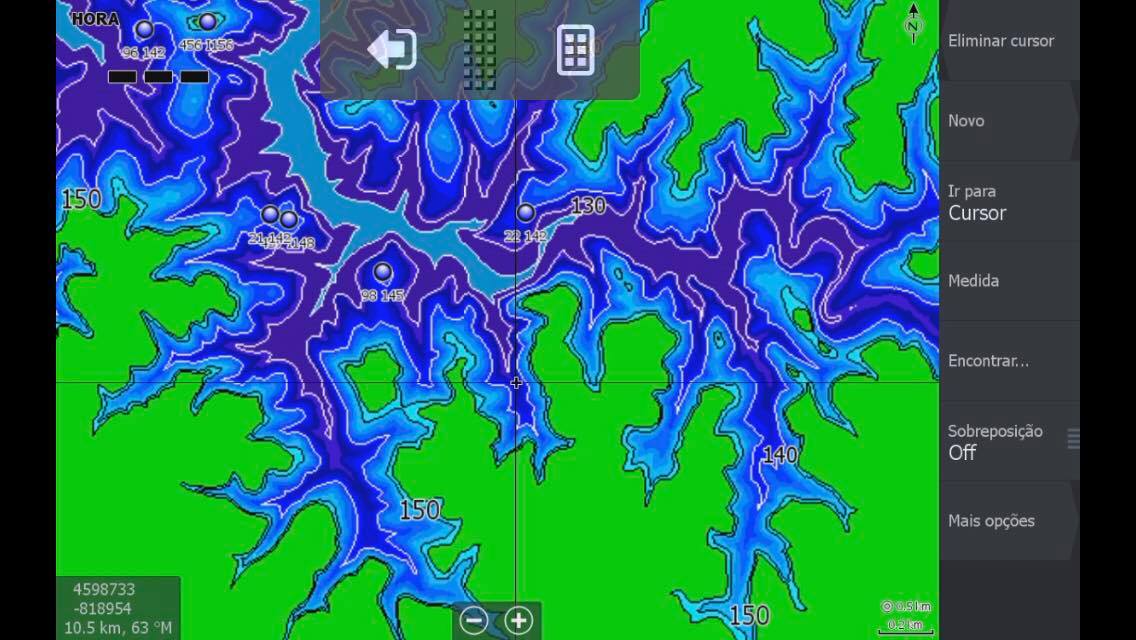

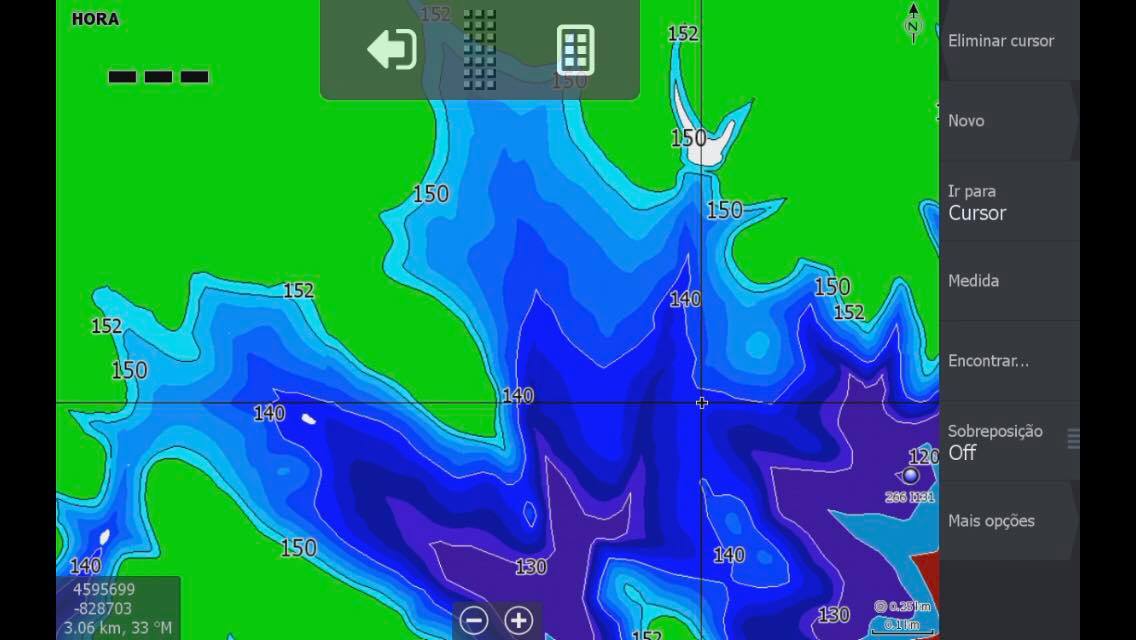

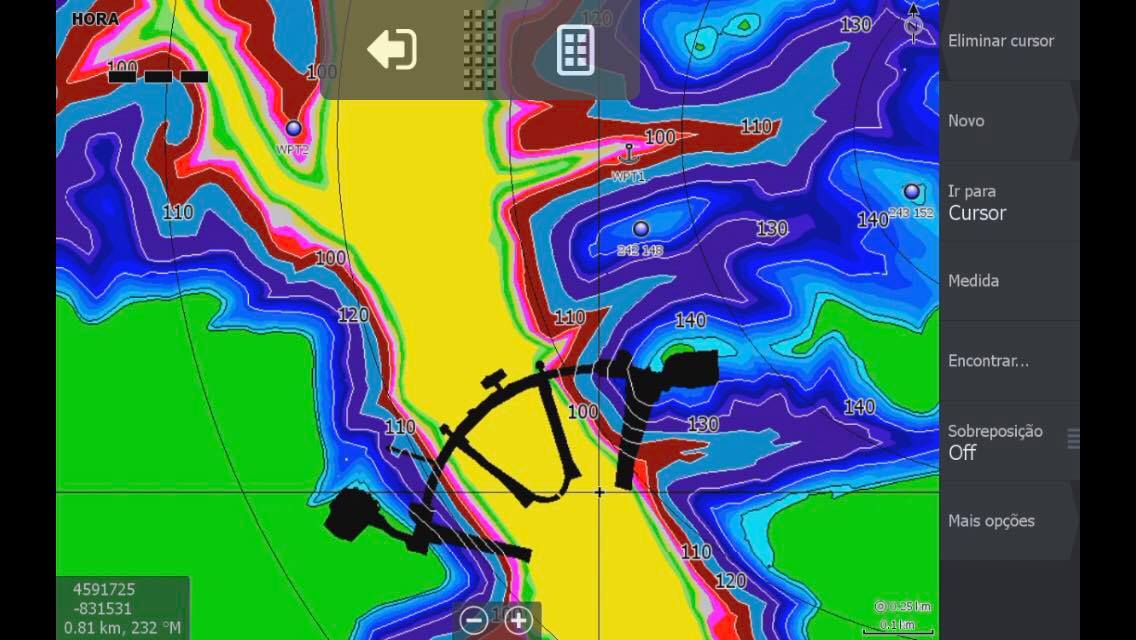

I already have all the curves in shap.I already mounted the map.
How do I add geotif as background?

hug

A.Ramos

[fjordfischer]

Geotiff als WGS84 with the IMC raster mode.
But why you not convert the height line into: shoreline = 0 and depth lines 1, 2, ... n meters?

Looks very nice!!!

[Antonioramos]

HELLO
  YOU CAN HELP ME WITH THAT SHAP AND EDIT THE CORRECT ATTRIBUTES.
HOW CAN I ENCRYPT MY MAPS SO THAT OTHERS CAN NOT COPY

best regards
A.RAMOS
